    IH500-G

    Glass IR Panel 500W | Yandiya Infrared Heating

    Elongated Glass IR Panel with a carbon heating element, frameless glass front and white aluminium back. IP65 rated, suited to larger bathrooms and living spaces.

    500WPower
    5yrWarranty

    Product Gallery

    500W550mm x 1100mm x 25mm
    Glass IR Panel 500W - Image 1
    1 / 3

    Key Features

    Carbon heating element for fast, efficient far infrared heat

    Frameless tempered glass front with aluminium back panel

    Premium white aluminium back coating

    IP65 rated - fully protected against water jets from any direction

    98% energy transfer efficiency

    20 year expected service life

    Available Variants5 options

    250W Glass Panel
    IH250-G

    250W Glass Panel

    Size:550 x 600mm

    Coverage:3.5-4m²

    250W
    450W Glass Panel
    IH450-G

    450W Glass Panel

    Size:600 x 700mm

    Coverage:6.5-7.5m²

    450W
    500W Glass Panel
    Current
    IH500-G

    500W Glass Panel

    Size:550 x 1100mm

    Coverage:7.5-8.5m²

    500W

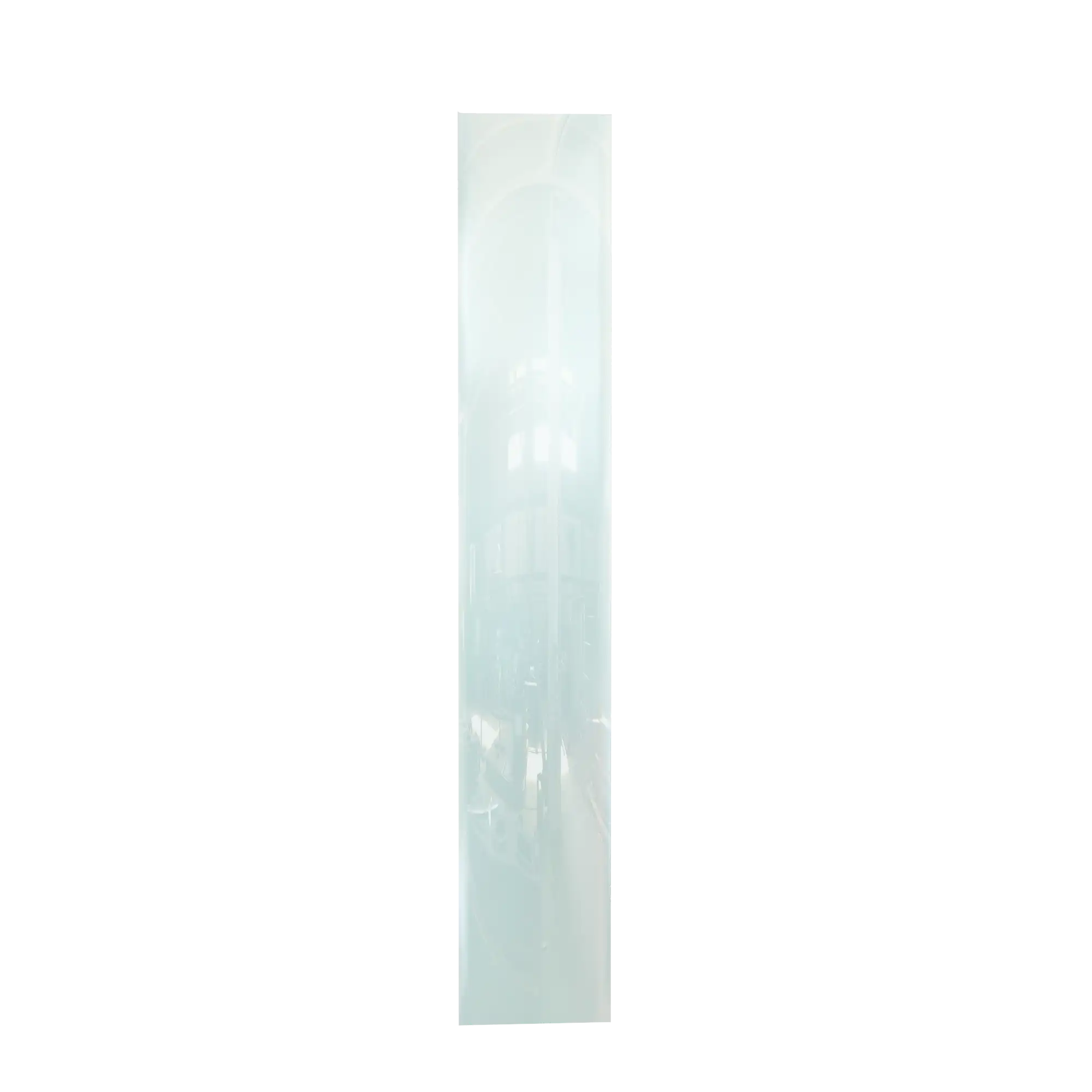

    600W Glass Panel
    IH600-G

    600W Glass Panel

    Size:300 x 1800mm

    Coverage:8.5-9.5m²

    600W
    750W Glass Panel
    IH750-G

    750W Glass Panel

    Size:600 x 1200mm

    Coverage:10-12m²

    750W

    Technical Specifications

    Heating Element

    Carbon

    Construction

    Frameless Glass

    Material

    Aluminium

    Coating

    White Aluminium Back

    Dimensions (L x W x D)

    550 x 1100 x 25mm

    Weight

    11.75kg

    Rated Power

    500 Watt

    Current Draw

    2.17 Amps

    Room Coverage

    7.5 - 8.5m²

    Surface Temperature

    90/110°C

    Operating Voltage

    110/240Vac

    Connection

    1.9 metre Cable

    Installation Type

    Wall Mount

    Service Life

    20 Years

    IP Rating

    IP65

    Certifications

    CE, RoHS, UKCA, EMC

    Warranty

    5 Years

    Available Sizes

    Dimensions
    550 x 600mm
    Coverage
    3.5-4m²
    Amps
    1.09A
    Dimensions
    600 x 700mm
    Coverage
    6.5-7.5m²
    Amps
    1.96A
    IH500-G500W
    Dimensions
    550 x 1100mm
    Coverage
    7.5-8.5m²
    Amps
    2.17A
    Dimensions
    300 x 1800mm
    Coverage
    8.5-9.5m²
    Amps
    2.61A
    Dimensions
    600 x 1200mm
    Coverage
    10-12m²
    Amps
    3.26A

    Key Features

    • Carbon heating element for fast, efficient far infrared heat
    • Frameless tempered glass front with aluminium back panel
    • Premium white aluminium back coating
    • IP65 rated - fully protected against water jets from any direction
    • 98% energy transfer efficiency
    • 20 year expected service life
    • 1.9 metre power cable for flexible installation
    • 5 Year manufacturer warranty

    Benefits

    • Safe for bathrooms, kitchens and other wet areas (IP65)
    • Elegant frameless glass design suits any interior
    • Durable, easy-clean aluminium-backed construction
    • Low running costs thanks to 98% energy transfer
    • Long 20-year expected service life
    • Even, comfortable far infrared warmth

    Product Description

    The Yandiya IH500-G is our elongated Glass IR Panel, measuring 550 x 1100mm to deliver a larger heating surface while keeping a slim, discreet profile. It uses the same carbon heating element and frameless tempered glass front with white aluminium back as the rest of the range.

    The IP65 rating means the IH500-G is fully protected against water jets from any direction, so it can be installed with confidence in bathrooms and other wet areas. Energy transfer of 98% ensures minimal waste and low running costs.

    With a 20 year expected service life and 5 year manufacturer warranty, the IH500-G connects via a 1.9 metre cable and is installed via simple wall mounting.

    Installation Information

    Installation Requirements

    • Must be installed by a qualified electrician
    • Wall mount installation only
    • Suitable for bathroom Zone 2 (IP65 rated)
    • Mounting brackets included
    • Connect to RCD protected circuit

    Warranty Information

    5

    5 Year Warranty

    Manufacturer Guarantee

    Full 5-year manufacturer warranty covering all manufacturing defects on the heating element and glass surface.

    Product Documents

    Visit our Downloads page for the complete range of technical documents, certificates, and resources.

    Interested in Glass IR Panel 500W?

    Contact our team today for expert advice, technical support, and a personalized quote for your heating requirements.
