Smart Controls

Technical Data Sheet & Product Overview

Document ReferenceYD-CTRL-2025-01Rev. 2.0 | January 2025

Product Overview

Yandiya Smart Controls provide comprehensive temperature management and smart home integration for our range of infrared heating panels. Our control solutions are designed for reliability, ease of use, and seamless connectivity with modern smart home ecosystems.

Precision Control

±0.5°C

Connectivity

WiFi/Zigbee

Safety Rating

IP20

Max Load

16A/3680W

Key Features

Compatible with all Yandiya IR panels
Smart home integration (Alexa, Google)
Energy monitoring & scheduling
7-day programmable timers
Frost protection mode
Child lock functionality
Open window detection
OTA firmware updates

Control Product Range

Temperature Control

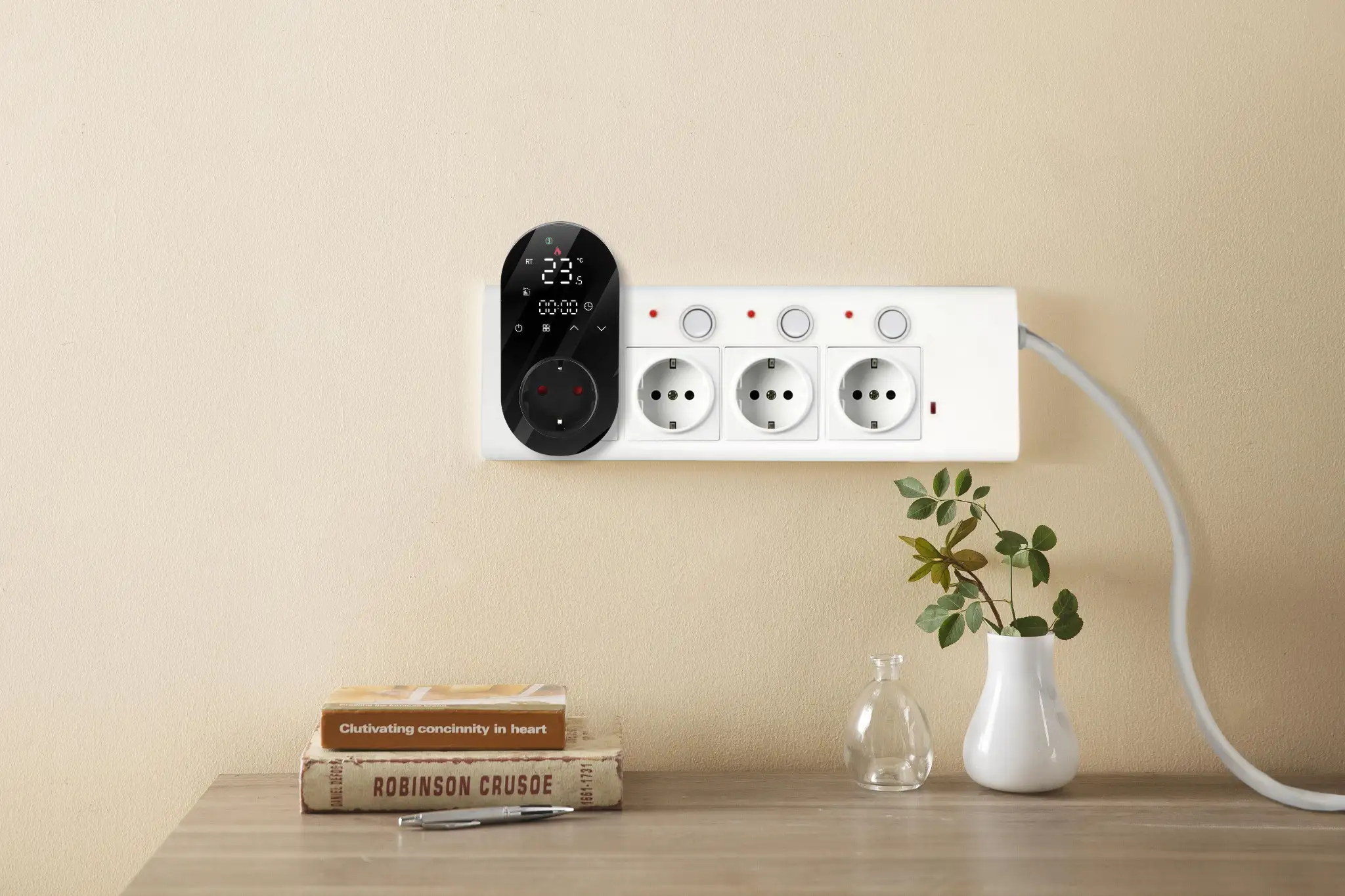

Digital Thermostats

Precision digital thermostats designed for optimal temperature control of infrared heating panels.

7-Day ProgrammingLCD DisplayFrost Protection

Power Supply:230V AC 50Hz

Max Load:16A (3600W)

Smart Connectivity

WiFi Relay Module

WiFi-enabled relay module for remote control and monitoring of your heating system via smartphone.

Remote AccessVoice Control CompatibleSchedule Setting

Power Supply:100-240V AC

Max Load:16A

Smart Home Integration

Zigbee Relay Module

Zigbee 3.0 compatible relay for seamless integration with smart home ecosystems and mesh networking.

Mesh NetworkLow PowerHub Compatible

Protocol:Zigbee 3.0

Max Load:16A (3680W)

Mobile Application

Tuya Smart Control

Complete smart home control solution with the Tuya app ecosystem for iOS and Android devices.

Multi-Device ControlScene AutomationVoice Assistant

Platform:iOS / Android

Compatibility:WiFi & Zigbee devices

Thermostat Models

Model	Product	Max Load	Display	Programming
YD-TH01	Digital Pro Thermostat	16A (3600W)	LCD Backlit	7-Day
YD-TH02	WiFi Smart Thermostat	16A (3600W)	Touch Screen	App Control
YD-TH03	Programmable Thermostat	16A (3600W)	LCD	5+2 Day

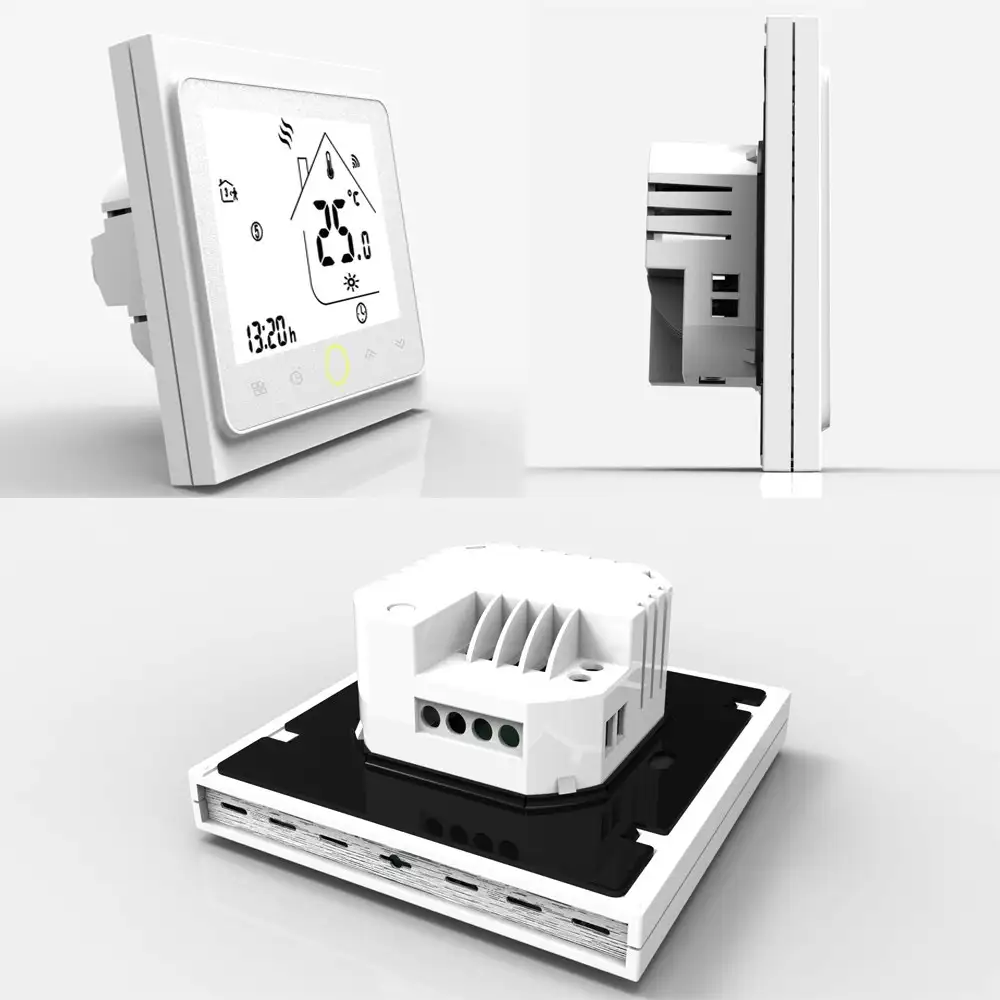

YD-TH04	Touch Screen Thermostat	16A (3600W)	Color Touch	7-Day

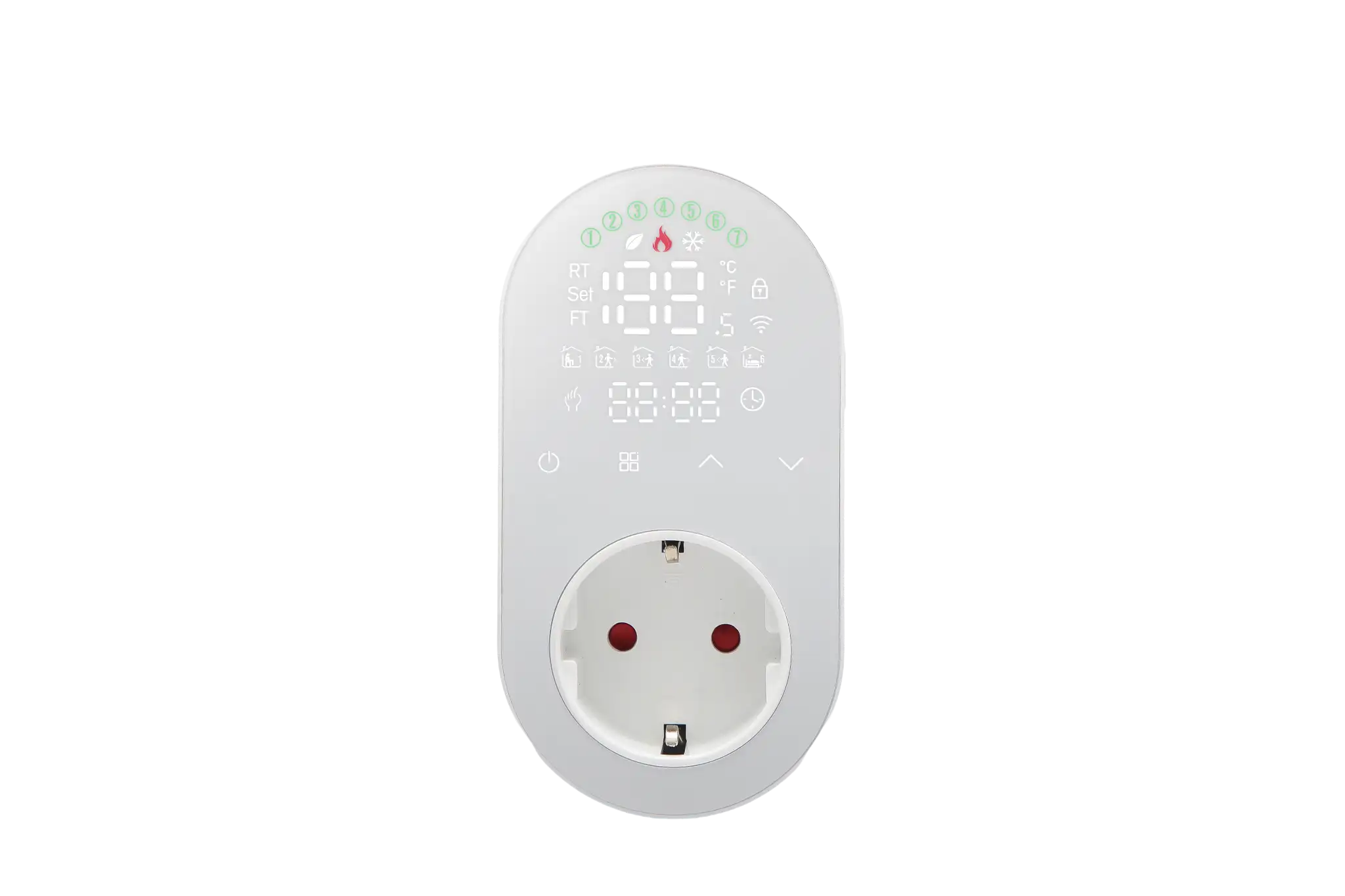

YD-TH05	Economy Thermostat	16A (3600W)	LCD Basic	Manual

Technical Specifications

Electrical

Input Voltage100-240V AC, 50/60Hz

Maximum Load16A (3680W @ 230V)

Standby Power<0.5W

Relay TypeDry Contact / SPST

Environmental

Operating Temperature-10°C to +40°C

Storage Temperature-20°C to +60°C

Humidity5% - 95% RH (non-condensing)

IP RatingIP20 (Indoor Use)

Communication

WiFi2.4GHz IEEE 802.11 b/g/n

ZigbeeZigbee 3.0 (2.4GHz)

RangeUp to 30m (open space)

EncryptionAES-128

Certifications & Compliance

European Conformity

RoHS

Restriction of Hazardous Substances

FCC

Federal Communications Commission

ETL

North American Safety

Documentation & Downloads

Need Technical Support?

Our engineering team is ready to help you select the right control solution for your project.

Document: YD-CTRL-2025-01 | Revision: 2.0 | Date: January 2025
